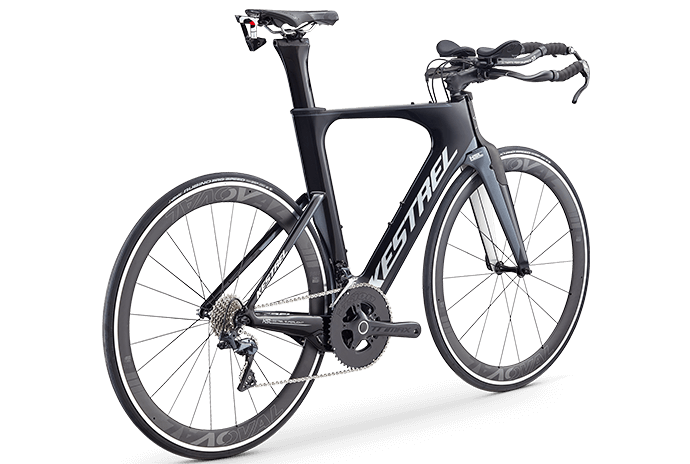

Using our highest grade KSL 800K Ultra high modulus carbon fiber with EPS internal molds to improve compaction, reduce weight, and increasing overall strength. The Shimano Ultegra drivetrain and Oval 950F wheels offer reliable top level performance without sacraficing durability. Each frame size is constructed with unique tube shapes, diameters, and carbon layup schedules to produce the best possible ride quality ride for the intended size rider.
The 5000 SL features a PF30 bottom bracket and oversized shell for efficient power transfer
The 5000SL features removeable brake fairings to shield these components from the wind.
The saddle rail clamp allows for 40mm of fore and aft adjustment to fine tune rider fit.
| Color(s) | SATIN CARBON / GLOSS BLACK |
| Weight | 19.93 lbs / 9.05 kg |
| Sizes | 50cm, 52.5cm, 55cm, 57.5cm, 59.5cm |
| Frame | Kestrel Super Light (KSL) 800K high-modulus carbon fiber, PF30 BB |
| Fork | KSL AERO Pro SL TT full-carbon, 1 1/8" steerer |
| Wheelset | Oval Concepts 950 F, 700c 18/24H aero carbon-alloy rims |
| Tires | Vittoria Rubino Pro Speed, 700 x 23c, folding |
| Crankset | Vision Trimax Compact TT, 52/36T |
| Bottom Bracket | Vision PF30 |
| Front Derailleur | Shimano Ultegra, braze-on |
| Rear Derailleur | Shimano Ultegra, 11-speed |
| Shifters | Shimano Dura-Ace SL-BSR1 bar-end TT shifters, 11-speed |
| Cassette | Shimano Ultegra, 11-28T, 11-speed |
| Chain | KMC X11EL w/MissingLink, 11-speed |
| Pedals | N/A |
| Brake Levers | Oval Concepts 701, forged alloy lever |
| Headset | FSA CX integrated 1 1/8" top, 1 1/8" bottom w/ 10mm top cover |
| Handlebar | Oval Concepts 750 6061 alloy base bar, Oval Concepts 750 6061 alloy clip-on |
| Stem | Kestrel KSL Aero Carbon |
| Saddle | Prologo ZERO TRI PAS, STN rails |
| Rider Height | Size* | |
| 5'3"-5'5" | 160cm-165cm | XS |
| 5'5"-5'7" | 165cm-170cm | S |
| 5'7"-5'9" | 170cm-175cm | M |
| 5'9"-5'11" | 175cm-180cm | L |
| 5' 11'- 6'2" | 180cm-188cm | XL |
*Kestrel's Size Guide shows suggested sizes. For the most accurate sizing please visit your local authorized Kestrel retailer for a bike fit and a test ride.
| XS (50cm) | S (52.5cm) | M (55cm) | L (57cm) | XL(59.5cm) | ||
| A | Seat Tube Center To Center | 505 | 525 | 550 | 577 | 595 |
| B | Seat Tube Effective | 505 | 525 | 550 | 577 | 595 |
| C | Top Tube Center to Center | 480 | 505 | 530 | 560 | 586 |
| D | Head Tube Length | 100 | 115 | 140 | 165 | 181 |
| E | Seat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| G | Headtube Angle | 70.3 | 71.5 | 72 | 72.5 | 73.5 |
| H | Chainstay Length | 395 | 395 | 395 | 395 | 395 |
| I | Wheelbase | 954 | 970 | 993 | 1021 | 104 |
| J | Bottom Bracket Drop | 72 | 72 | 72 | 72 | 72 |
| K | Fork Offset | 45 | 45 | 45 | 45 | 45 |
| L | Trail | 58.1 | 55.1 | 53.2 | 53.2 | 52 |
| M | Stack | 499 | 518 | 543 | 568 | 571 |
| N | Reach | 365 | 386 | 405 | 429 | 456 |
| O | Standover | 749 | 763 | 777 | 793 | 798 |
| Stem | 80 | 90 | 90 | 100 | 100 | |
| Handlebar Width | 420 | 420 | 420 | 420 | 420 | |
| Crank | 170 | 172.5 | 172.5 | 175 | 175 | |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | |
| Seat Post Diameter | N/A | N/A | N/A | N/A | N/A |
