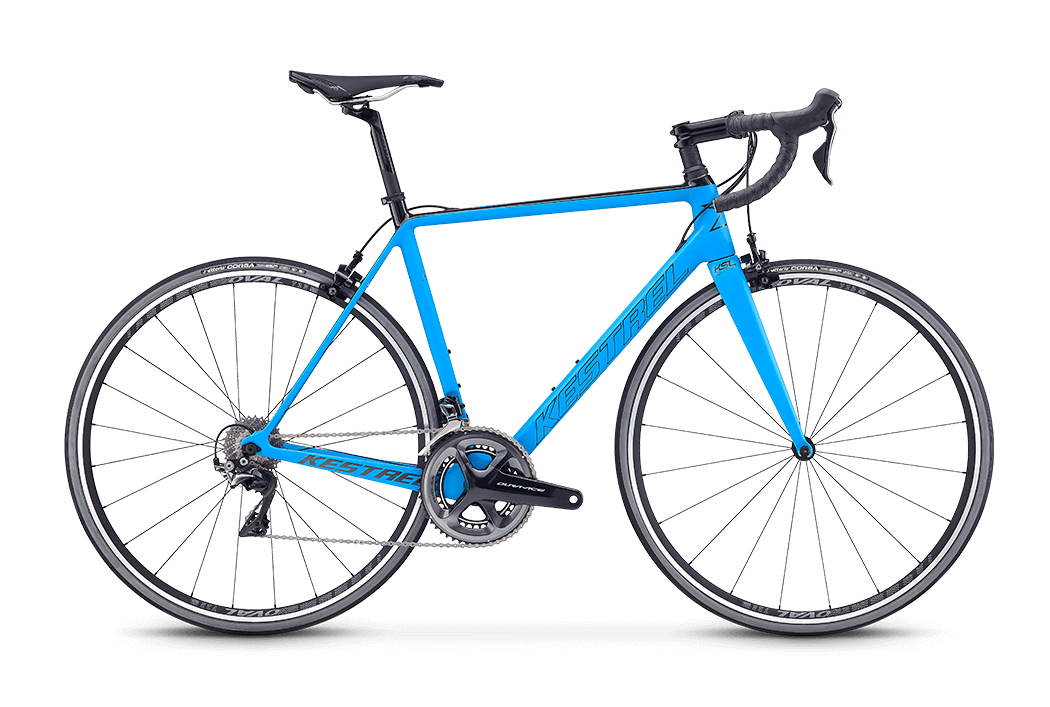

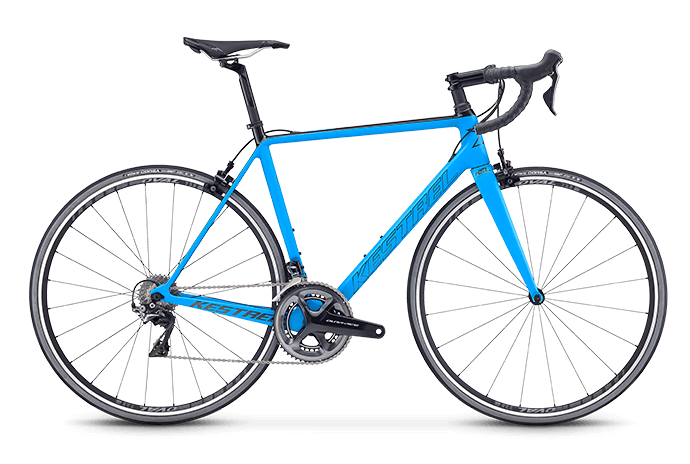

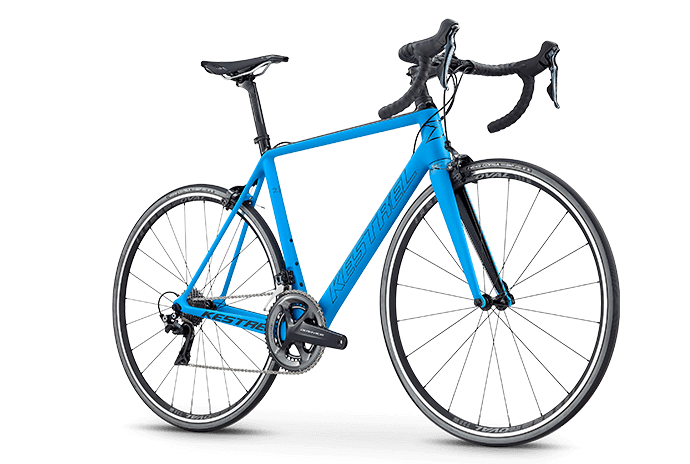

The new Legend SL is constructed using our highest grade 800K Ultra high-modulus carbon fiber in a new one-piece mold structure. No bonded joints means the lightest, strongest, and best riding frameset we’ve ever created at a mere 625g. Complimenting the sophisticated frame design is Shimano's top tier Dura Ace group set for professional level performance. Each of the seven sizes have unique tube shapes, and carbon layups to produce the best possible ride quality for every size rider.
The new Legend SL frame weighs a mere 625g, one of the lighest frames in the world
Engineered seatstays reduce road vibration keeping the rider more comfortable
The shaped downtube, PF30 bottom bracket, and tall chainstays provide efficient power transfer
| Color(s) | SATIN BLUE |
| Weight | 15.01 lbs / 6.82 kg |
| Sizes | 48cm, 51cm, 54cm, 57cm, 60cm |
| Frame | Kestrel Super Light (KSL) 800K high-modulus carbon fiber, PF30 BB |
| Fork | KSL full-carbon, 1 1/8" - 1 1/2" tapered steerer |
| Wheelset | Oval Concepts 723, 700c 20/28H tubeless compatible rims |
| Tires | Vittoria Corsa, 700 x 25c, folding |
| Crankset | Shimano Dura-Ace, 52/36T |
| Bottom Bracket | Praxis PF30 Conversion 24mm spindle |
| Front Derailleur | Shimano Dura-Ace, braze-on |
| Rear Derailleur | Shimano Dura-Ace, 11-speed |
| Shifters | Shimano Dura-Ace STI, 11-speed |
| Cassette | Shimano Dura-Ace, 11-28T, 11-speed |
| Chain | Shimano Dura-Ace, 11-speed |
| Pedals | N/A |
| Brake Levers | Shimano Dura-Ace STI |
| Headset | ACROS The Clamp integrated 1 1/8" top, 1 1/2" bottom |
| Handlebar | ZIPP Service Course SL 80, 31.8mm |
| Stem | ZIPP Service Course SL, 7075 3D-forged alloy, 31.8mm, +/- 6 |
| Saddle | Prologo Zero II, Cromo rails |
| Rider Height | Size* | |
| 5'3"-5'5" | 160cm-165cm | XS |
| 5'5"-5'7" | 165cm-170cm | S |
| 5'7"-5'9" | 170cm-175cm | M |
| 5'9"-5'11" | 175cm-180cm | L |
| 5' 11'- 6'2" | 180cm-188cm | XL |
*Kestrel's Size Guide shows suggested sizes. For the most accurate sizing please visit your local authorized Kestrel retailer for a bike fit and a test ride.
| XS (48cm) | S (51cm) | M (54cm) | L (57cm) | XL (60cm) | ||
| A | Seat Tube Center To Center | 480 | 510 | 540 | 570 | 600 |
| B | Seat Tube Effective | 480 | 510 | 540 | 570 | 600 |
| C | Top Tube Center to Center | 520 | 540 | 555 | 570 | 590 |
| D | Head Tube Length | 120 | 135 | 150 | 170 | 190 |
| E | Seat Tube Angle | 74.5° | 73.5° | 73.5° | 73° | 72.5° |
| G | Headtube Angle | 71.5 | 72.5 | 73 | 73 | 73.5 |
| H | Chainstay Length | 405 | 405 | 405 | 405 | 405 |
| I | Wheelbase | 973 | 975 | 985 | 995 | 1004 |
| J | Bottom Bracket Drop | 69 | 69 | 69 | 69 | 69 |
| K | Fork Offset | 45 | 45 | 45 | 45 | 45 |
| L | Trail | 58 | 56 | 58 | 57 | 57 |
| M | Stack | 518 | 537 | 551 | 571 | 591 |
| N | Reach | 377 | 381 | 392 | 396 | 404 |
| O | Standover | 708 | 729 | 749 | 789 | 806 |
| Stem | 90 | 90 | 100 | 110 | 110 | |
| Handlebar Width | 400 | 400 | 420 | 440 | 440 | |
| Crank | 170 | 170 | 170 | 175 | 175 | |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
