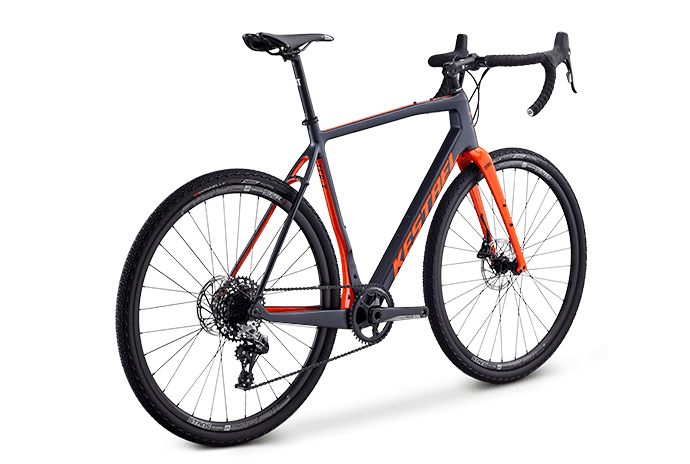

Made from our 800k ultra high-modulus Kestrel Super Light carbon fiber, the TER-X is a lightweight gravel grinding machine. Float over the rough with high volume Donnelly 700x36c tires with a tread pattern that grips onto the loose surfaces. A SRAM Rival 1 drivetrain keeps shifting efficient and reliable while hydraulic brakes ensure you keep your speed in check.
The Ter-X features our lightest KSL Carbon construction for ultra efficient pedaling performance
The shaped downtube and tall chainstays provide efficient power transfer
Disc brakes provide confidence inspiring stopping in all weather conditions
| Color(s) | SATIN GRAPHITE |
| Weight |
| Sizes | 46cm , 49cm, 52cm, 54cm, 56cm, 58cm, 61cm |
| Frame | Kestrel Super Light (KSL) 800K carbon fiber, FM Disc, BSA BB |
| Fork | KSL full-carbon, 1 1/8" - 1 1/2" tapered steerer, Flat Mount Disc 12mm TA, dual water bottle cage mounts |
| Wheelset | Stans No Tubes Grail MK1, 32h |
| Tires | Donnelly X'Plor MSO, 700 x 36c, folding |
| Crankset | FSA Omega Adventure, 40T |
| Bottom Bracket | FSA BB386 EVO BSA |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Rival 1 HRD |
| Shifters | SRAM Rival 1 Hydraulic Disc |
| Cassette | SRAM PG-1130, 11-42T |
| Chain | KMC X11-1 w/MissingLink |
| Pedals | N/A |
| Brake Levers | SRAM Rival 1 HRD |
| Headset | FSA integrated 1 1/8" top, 1 1/2" bottom |
| Handlebar | 3T Ergonova, 31.8 |
| Stem | 3T ARX II, 6061 3D-forged alloy, 31.8mm, +/- 6 |
| Saddle | Prologo Kappa RS, STN rails |
| Rider Height | Size* | |
| 5'3"-5'5" | 160cm-165cm | XS |
| 5'5"-5'7" | 165cm-170cm | S |
| 5'7"-5'9" | 170cm-175cm | M |
| 5'9"-5'11" | 175cm-180cm | L |
| 5' 11'- 6'2" | 180cm-188cm | XL |
| 6' 2'- 6'4" | 188cm-193cm | XXL |
*Kestrel's Size Guide shows suggested sizes. For the most accurate sizing please visit your local authorized Kestrel retailer for a bike fit and a test ride.
| Size | XS | S | M | L | XL | XXL | |
| Bike Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | |
| A | Seat Tube Center To Center | 490 | 520 | 540 | 560 | 580 | 610 |
| B | Seat Tube Effective | 490 | 520 | 540 | 560 | 580 | 610 |
| C | Top Tube Center to Center | 525 | 535 | 545 | 560 | 575 | 595 |
| D | Head Tube Length | 120 | 140 | 150 | 170 | 190 | 210 |
| E | Seat Tube Angle | 74.5° | 74° | 73° | 73° | 72.5° | 72.5° |
| G | Headtube Angle | 70.5 | 71 | 71.5 | 72 | 72 | 72 |
| H | Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| I | Wheelbase | 1020 | 1022 | 1016 | 1027 | 1037 | 1058 |
| J | Bottom Bracket Drop | 69 | 67 | 67 | 67 | 65 | 65 |
| K | Fork Offset | 48 | 48 | 48 | 48 | 48 | 48 |
| L | Trail | 73 | 70 | 67 | 64 | 64 | 64 |
| M | Stack | 541 | 560 | 572 | 592 | 609 | 628 |
| N | Reach | 375 | 375 | 370 | 379 | 383 | 397 |
| O | Standover | 767 | 790 | 804 | 824 | 841 | 865 |
| Stem | 80 | 80 | 90 | 90 | 110 | 110 | |
| Handlebar Width | 400 | 400 | 420 | 420 | 440 | 460 | |
| Crank | 170 | 170 | 172.5 | 172.5 | 175 | 175 | |
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
